5,200 lbs. Straight Spring Trailer Axle

$285.00

Price starts from plain axle (axle beam). Prices change based on custom-picked features!

We will follow up, don’t worry about everything being perfect in this form.

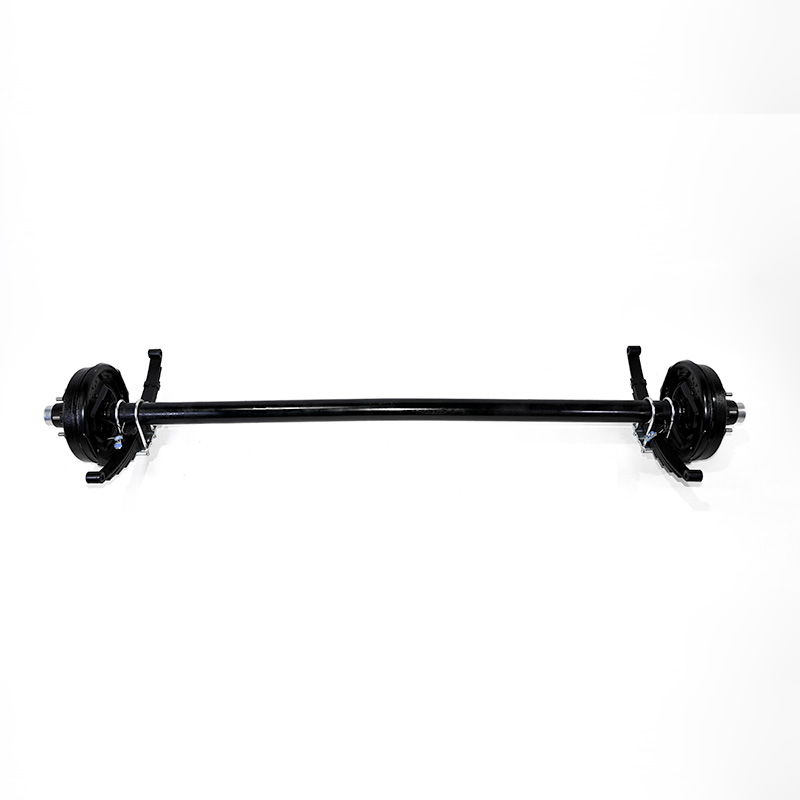

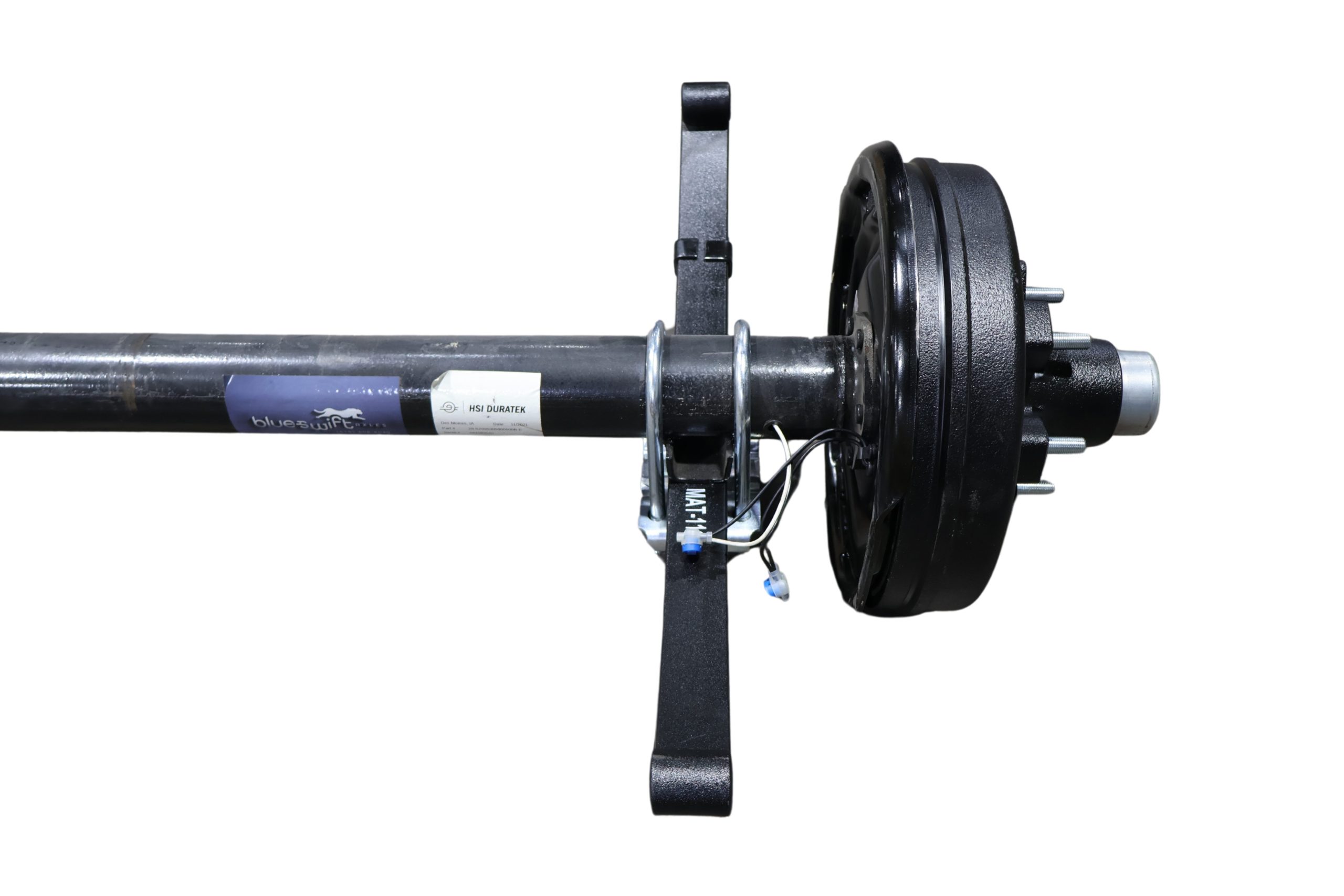

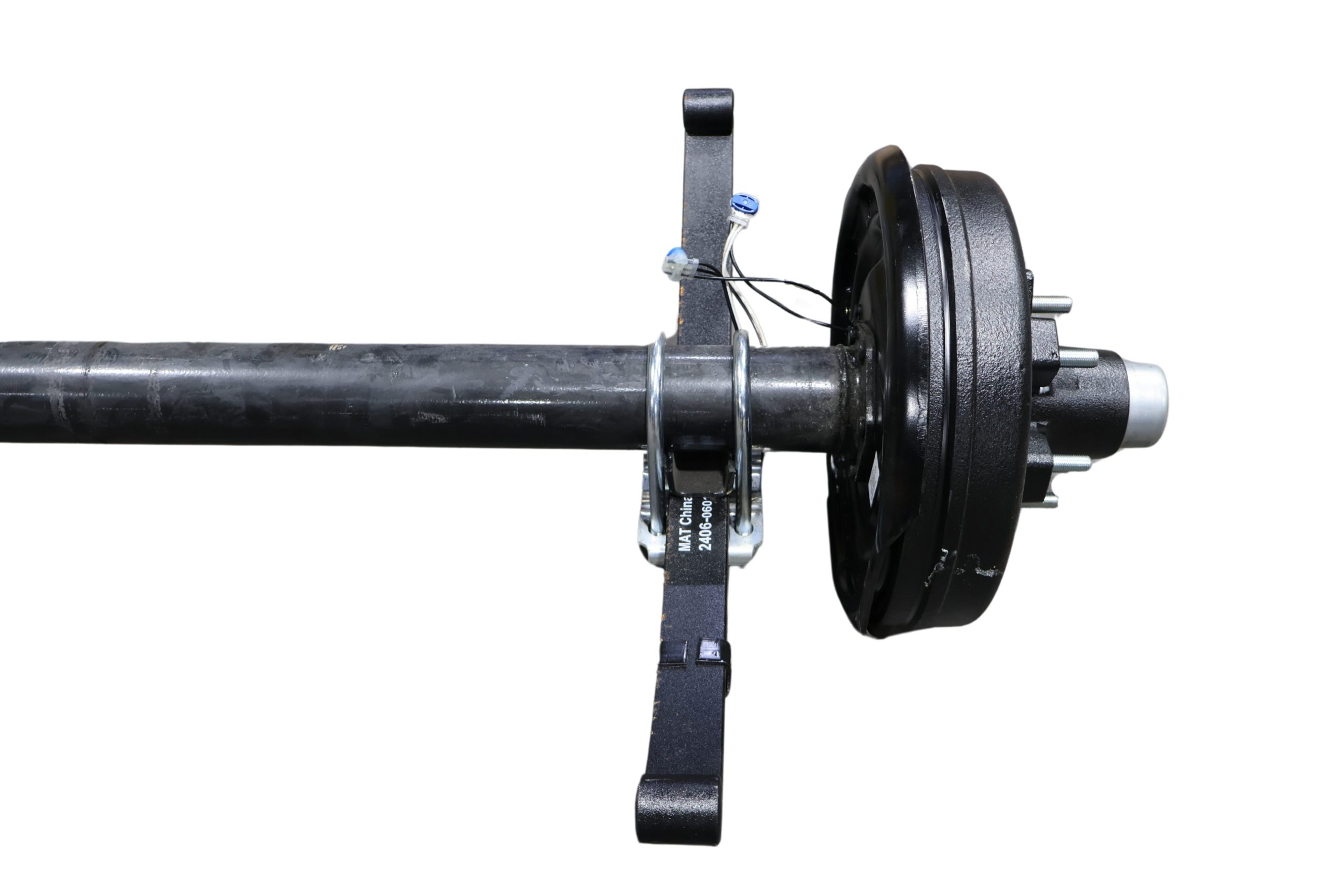

This spring axle has a 5.2k capacity, 5,200 lbs capacity, for trailers. Please select the options below to order your custom-built trailer axle.

Select Spring Type *

Select Spring Pads *

Select Camber *

Select Hub Type *

Select Brake Type *

Confirm Stud Size *

Confirm Bolt Circle *

Type in Spring Center Measurement *

Spring Center must be between 13″ – 18″ less than the hubface. See the diagram on the left for directions on how to measure your spring centers.

Select Hub Face Measurements *

Select Shipping *

Have you reviewed the order details, including dimensions and measurements? *

Please measure and review your order details to avoid non-refundable order errors.
Call 515-608-8040 CST with questions.

Categories: , ,

Installation

Spring Axles are an easy to install option. When replacing a spring axle there is no welding required! Spring Axles are ideal for their easy upkeep. Their replaceable components make them the more economical trailer option when compared to Torsion Axles.

Do you drive over gravel or uneven roads? Spring Axles use equalizers to distribute the weight of the load evenly over axles, especially with multi axle configurations. Trailers carrying cargo over gravel or bumpy roads can depend on spring axles for stability.

If you are switching from a Torsion Axle to a Spring Axle there are extra measurements that our team can assist you with info@BlueSwiftAxles.com





Usage

  • Gravel
  • Bumpy Roads
  • Uneven Surfaces
  • Varying Load Weights



Maintenance and Repair:

Replacement components are available for wear and tear. Spring Axles are a better option for trailer owners and companies who want to avoid full axle replacement expenses.

All the wearing items are replaceable by unbolting and bolting on the new parts.

Construction:

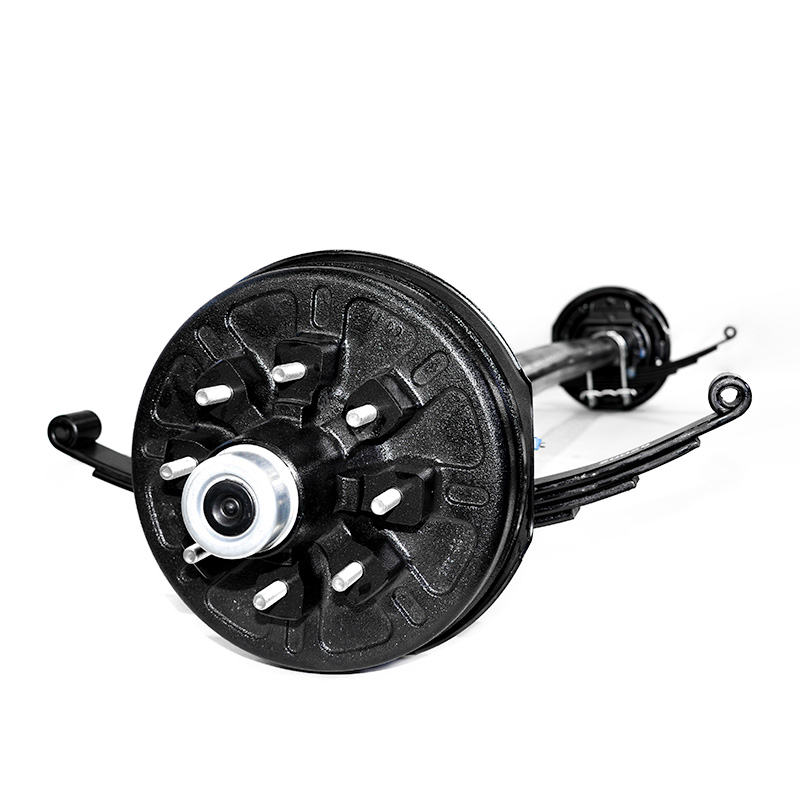

Spring axles use metal stacked leaf springs to support your trailer capacity. BlueSwift Axles carry a variety of Trailer Spring Axles from 2k-7K axle capacities.

don’t forget the u-bolts!

Don’t forget to replace your U-Bolt with your Axle Replacement.
