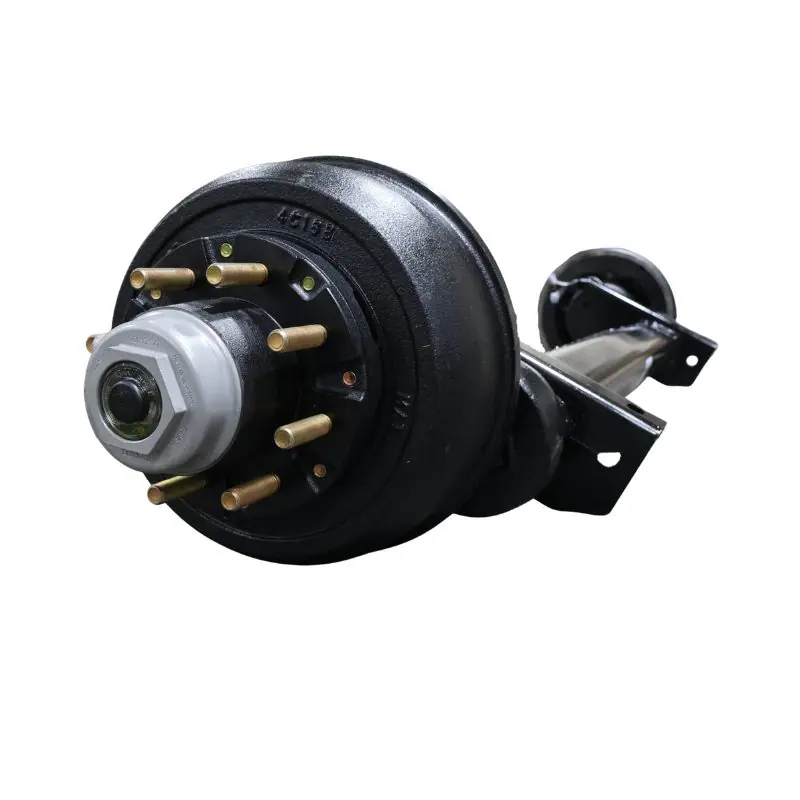

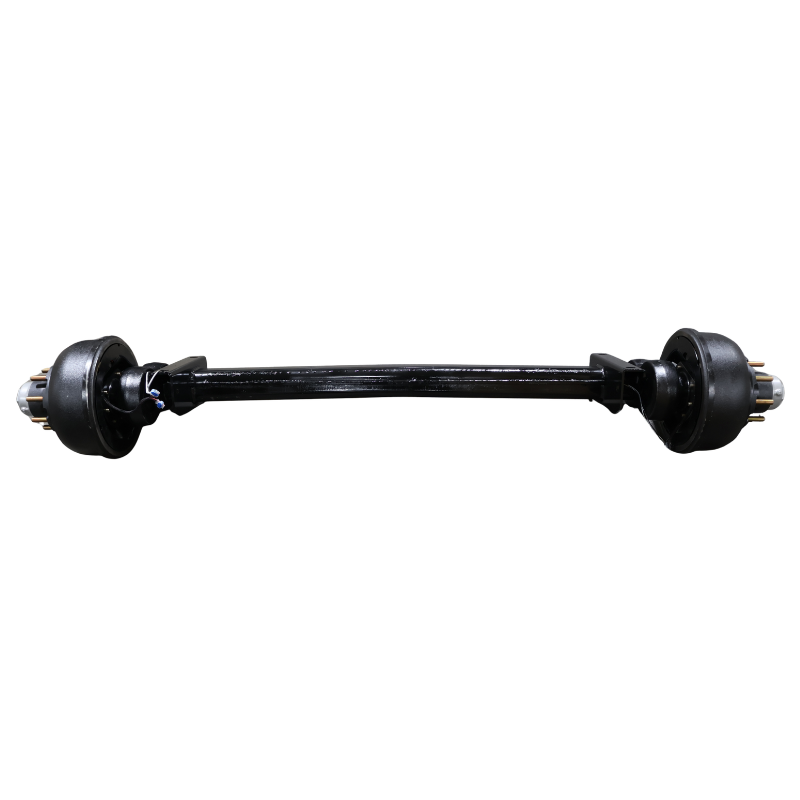

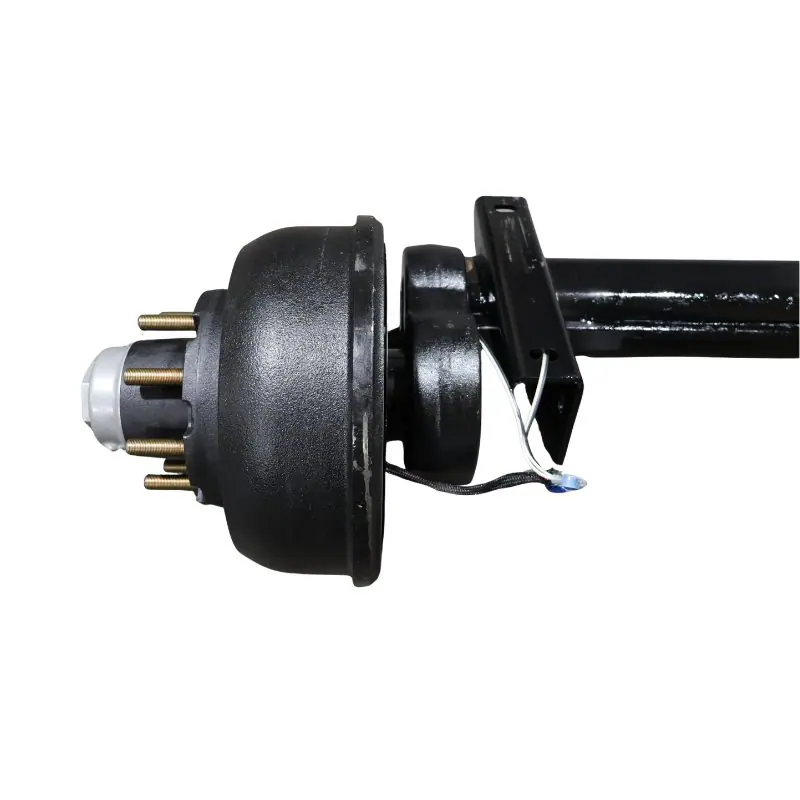

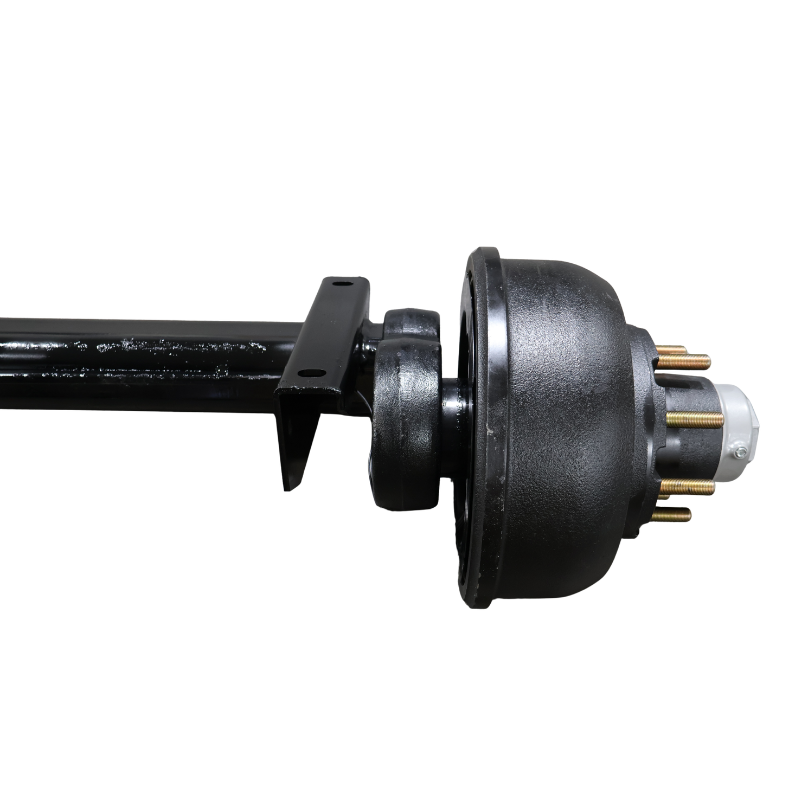

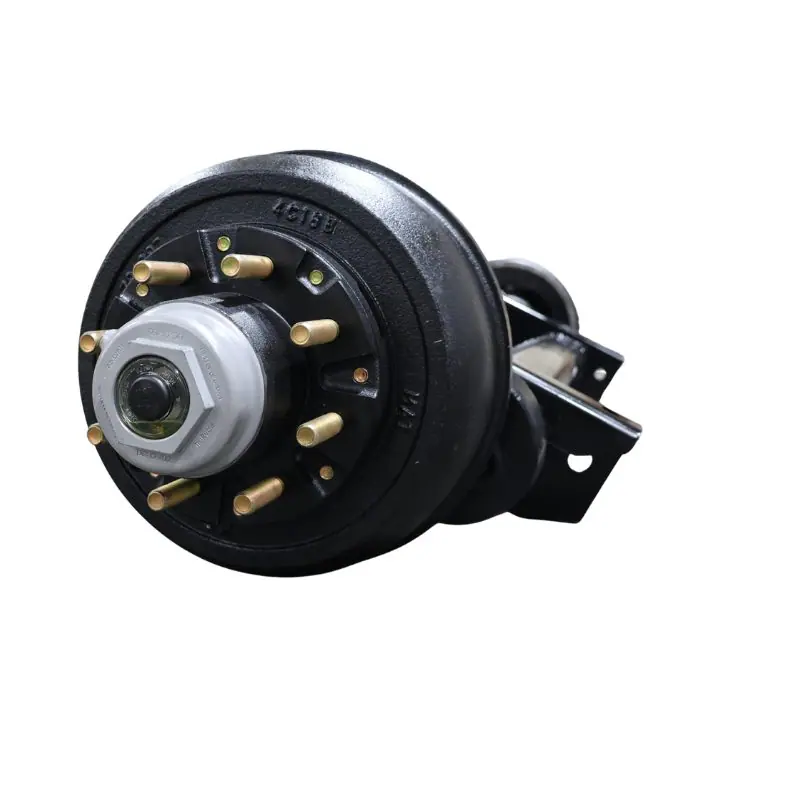

Custom-Made 10K General Duty Torsion Axle

This custom-made 10K general-duty torsion axle delivers reliable, independent suspension that minimizes cargo shifting and helps protect sensitive loads for trailers carrying up to 10,000 pounds. This axle type absorbs impacts on each wheel individually rather than transferring shock across the entire trailer frame, reducing stress on both the cargo and the trailer structure.

Built-to-Order 10K General Duty Torsion Axle Specifications

Every custom-made 10K general-duty torsion axle is engineered to your trailer's exact requirements. Key specifications include:

• 3-7/8" square axle tube: Provides structural strength for heavy equipment loads.
• Grease or oil bath lubrication: Choose the lubrication type that fits your trailer.
• Tailored hub face configurations: Precise spacing matches your trailer frame width and wheel requirements.
• Flexible mounting bracket options: Choose low-profile or high-profile mounting systems based on your trailer design and desired ride height.
• Multiple angle options: Options include 22.5° up, 10° up, level, 10° down, 22.5° down or 45° down to match your trailer geometry.
• Three brake configurations: Decide between idler (no brakes), 12-1/4" x 3-3/8" electric brake or hydraulic disc brake systems.

We verify measurements by phone before production begins to catch errors early and eliminate costly delays when axles don't fit.

Performance Advantages of a Torsion Axle Design

Unlike straight spring axles that use a solid axle beam with leaf spring suspension, each wheel on torsion axles moves independently. This design provides several operational benefits:

• Independent wheel movement: When one wheel hits a pothole or climbs over debris, the other wheel maintains ground contact and stability.
• Cargo protection: Sensitive equipment experiences less jarring during transport, reducing damage to hydraulic components and delicate materials.
• Lower deck height: The axle design eliminates the need for leaf springs mounted below the frame, creating easier loading access without ramps.
• Reduced frame stress: Impact forces remain isolated to individual wheels rather than being transferred across the entire axle assembly.

Common Use Cases for 10K General Duty Torsion Axles

This capacity range serves trailers that regularly haul equipment and materials where cargo protection is paramount. Typical applications include:

Flatbeds and Dump Trailers

These axles are robust enough to provide the support needed by flatbed trailers and dump trailers carrying less than the rated weight limits. From hauling composite materials to transporting machinery, these axles are an excellent choice.

Construction and Contractor Trailers

Construction contractors outfit utility trailers with 10K torsion axles for transporting power tools, generators and building materials between jobsites. The lower deck height simplifies loading heavy items like compressors and welding equipment.

Equipment Rental and Delivery Trailers

Equipment rental operations install these axles on trailers that deliver excavators, skid steers and other machinery to customer locations. The axle's vibration-dampening qualities reduce stress and minimize premature wear on hydraulic systems during highway transport.

Why Source Your Custom Axle From Blueswift Axles?

When you choose Blueswift Axles for your custom torsion axle, you benefit from:

• 48-hour turnaround times: Your axle can be ready to ship within two business days of order confirmation.
• Manufacturing transparency: We build axles to the same rigorous standards as leading national brands.
• Personal verification: A team member calls to confirm every measurement before production.

Order Your Custom-Made 10K General Duty Torsion Axle

Call us today at (515) 608-8040 to discuss your trailer specifications with a Blueswift Axles specialist. We'll verify hub face measurements, brake requirements and angle specifications before building your axle and offer free nationwide shipping on orders over $100
