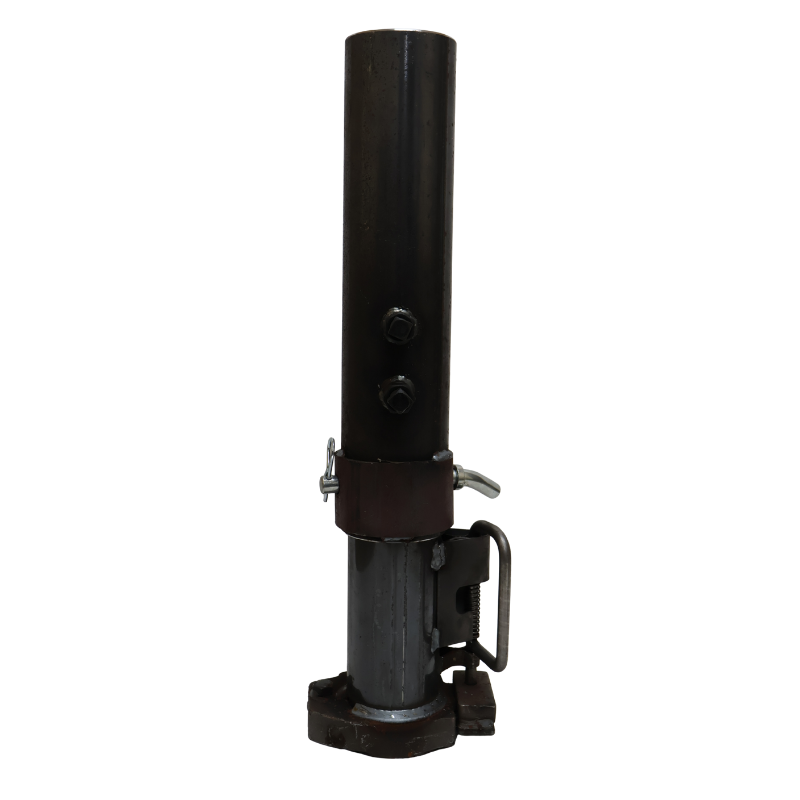

Gooseneck Coupler w/ Load Bearing Pin – 8″ Adjustment

Description

The RAM Gooseneck Coupler 30K gives you a heavy-duty hitch connection for serious towing jobs. It fits trailers that tow with a 2-5/16″ gooseneck ball, the standard size for heavy commercial towing. This round gooseneck coupler delivers a 30,000 lb gross trailer weight capacity, perfect for large flatbeds, equipment trailers, livestock trailers, and heavy utility trailers.

This coupler uses a round tube design. The outer tube measures 4-1/2″ in diameter and the inner tube measures 4″ in diameter. You weld the outer tube to your trailer’s gooseneck frame. The inner tube slides vertically inside the outer tube so you can adjust the hitch height to match different trucks. It gives an 8″ range of vertical adjustment.

The hidden spring latch and curved internal ball clamp secure the hitch ball tight once you lower it in place. The load-bearing pin locks the inner and outer tubes at your chosen height. This design meets SAE J2638 safety standards and gives you strong and reliable towing performance.

You install this gooseneck coupler on trailers that use a round gooseneck tongue tube. The welded gooseneck frame lets you set the coupler height to keep the trailer level behind the tow vehicle. A level trailer improves control, reduces sway, and gives smoother towing.

This coupler fits trailers that tow behind trucks with a 2-5/16″ gooseneck hitch ball in the bed. It pairs with load pins and set screws to hold position under heavy load. It works well on construction trailers, heavy equipment trailers, large livestock trailers, and commercial pull-type trailers.

The robust design and heavy-gauge steel construction give you years of dependable use. The raw, unpainted finish welds easily and lets you tailor the setup to your trailer frame.
