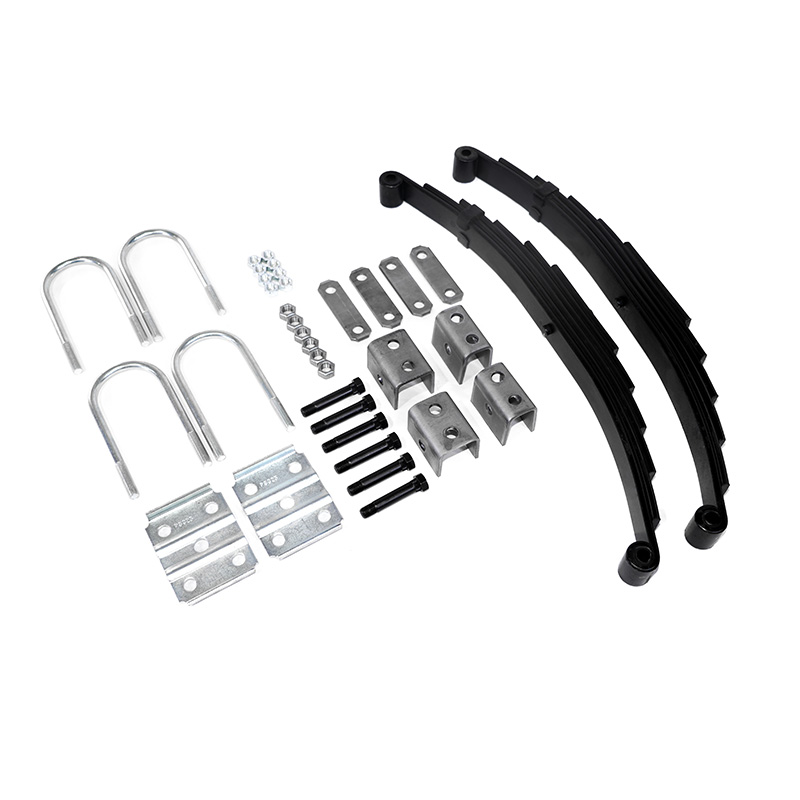

alt="7000 LB Double Eye Single Axle Suspension Kit"/>

alt="6 leaf trailer axle double eye leaf spring"/>

alt="trailer axle suspension U-Bolt kit"/>

3.5" Shackle Bolt - 4113-7 and Shackle Bolt Hex Nut - 4101-6

Trailer Leaf Spring suspension Shackle Strap 4101-2 Front view

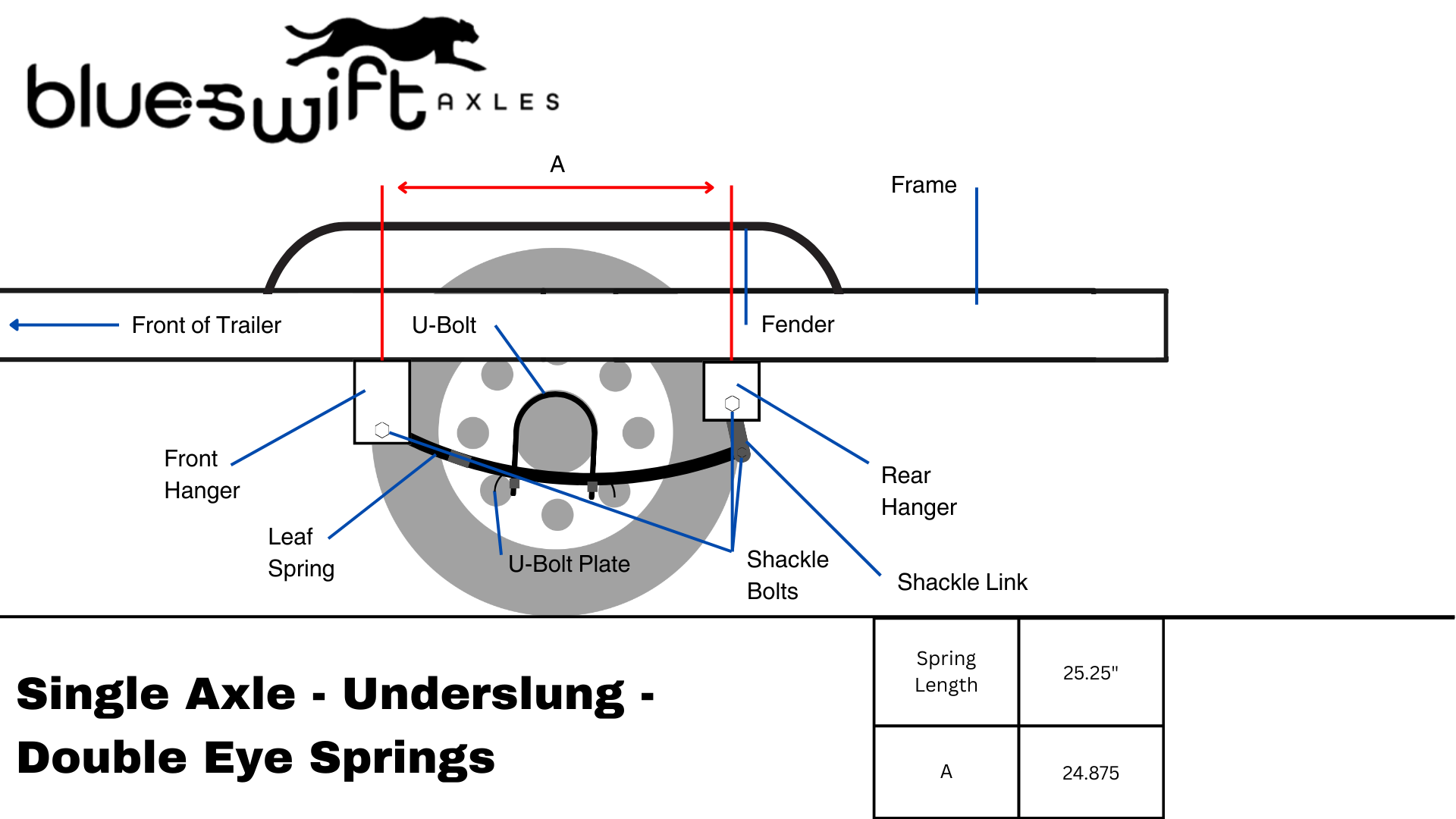

double eye underslung springs on a single axle diagram with measurements

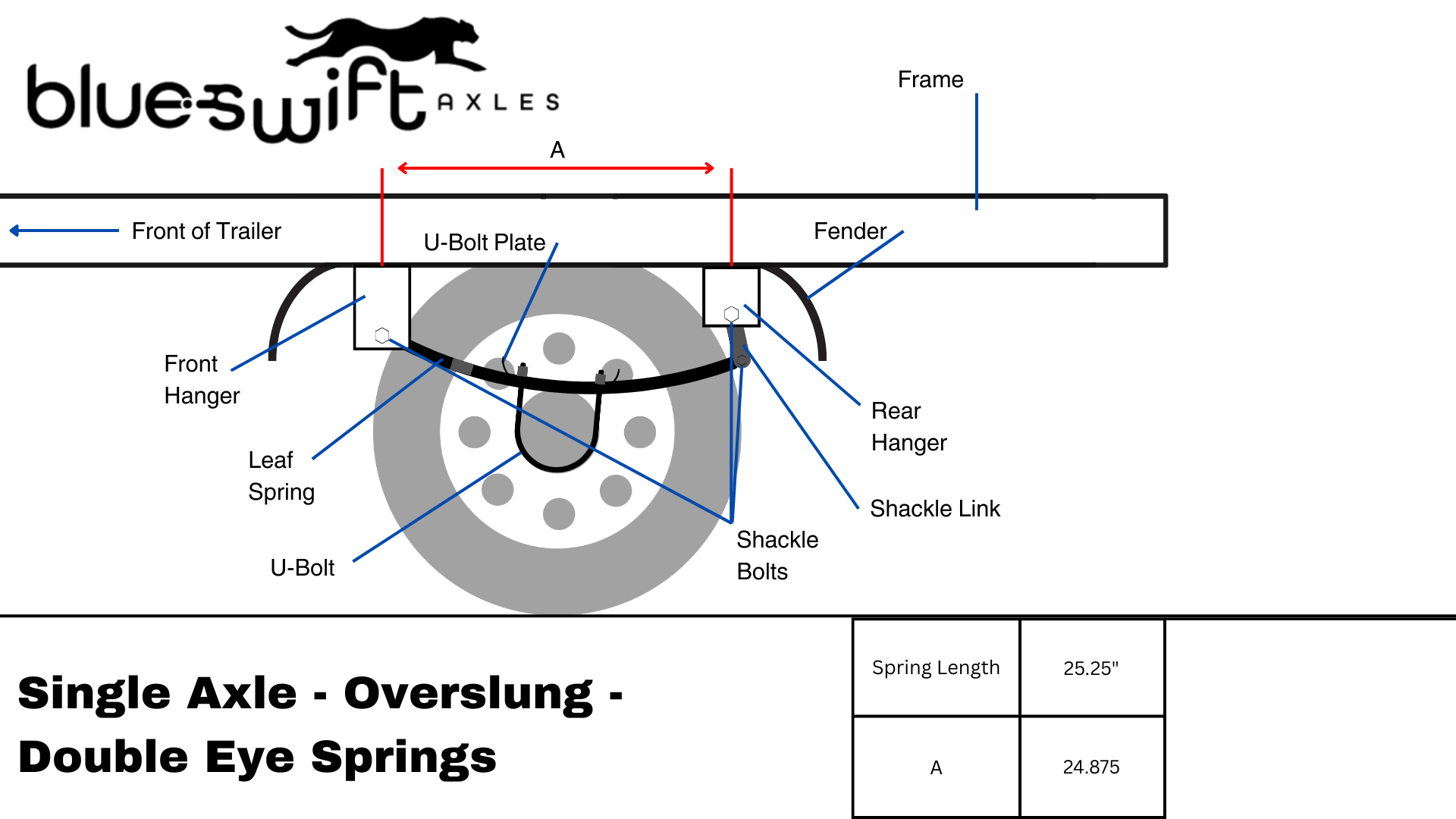

double eye overslung springs on a single axle diagram with measurements

7000 LB Double Eye Single Axle Suspension Kit

$210.00

Suspension Kit 7000 LB, Single Axle, Double Eye

In stock

Categories: 7K Double Eye Kit, Kits, Single Axle Double Eye, Trailer Axle Suspension Kits

Description
Reviews (0)

7000 LB Double Eye Single Axle Suspension Kit

This kit comes with all the components you'll need to install your Single Axle Trailer Suspension.

This Kit Includes:

(2) Leaf Springs - 6 leaf (3,500 lb.), 1-3/4" wide, 25-1/4" long
(4) U-Bolts - 3" U-bolts, 7" long, 3.125" ID width, 1/2"-24 thread, 2" thread length
(2) U-Bolt Plates - 5.125" x 3.75" tie plates for 3" U-bolts
(8) Nuts - 1/2" 20 hex nuts
(4) Hangers - (x2) 1-1/2" tall front hangers, (x2) 7/8" tall rear hangers
(6) Hanger Bolts and Nuts - 3" long x 9/16" diameter shackle bolts, 9/16" diameter lock nuts
(4) Shackles - 3-1/8" long shackle straps
