5200 LB Hydraulic Brake Kit


12″ x 2″ Hydraulic Brake Kit

In stock

Select Shipping *

Shipping: Some areas are out of our shipping zones: Hawaii, Alaska, Canada, and Zones out of the USA. If you’re still interested, we will quote you on shipping rates or refund your order.

Have you reviewed the order details, including dimensions and measurements? *

Please measure and review your order details to avoid non-refundable order errors.
Call 515-608-8040 CST with questions.

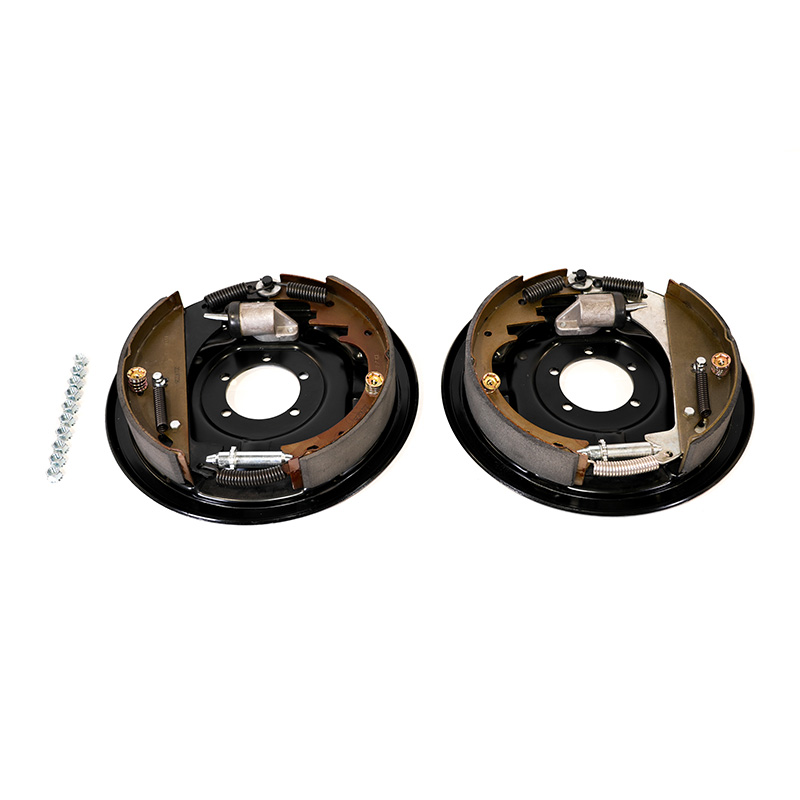

12″ x 2″ hydraulic, contains one right hand and one left hand hydraulic brake assembly, 10 retainer nuts


Hydraulic brakes are commonly used on boat trailers. The reason for this is going in and out of the water can corrode wires making electric brakes not as reliable.

How to bleed the brake lines when installing hydraulic brakes?

  1. Secure the brake to the backing plate on the axle.
  2. Put your hub back onto the spindle.
  3. Tighten the castle nut, install the cotter pin, and put the dust cap back on.
  4. Attach the brake line to the back of the brake assembly.
  5. (It is best to do this with two people) Open the bleeder, apply pressure to the tongue of the trailer, and then close the bleeder.
  6. You should have all of the air out of the line, leaving only brake fluid.
