Description

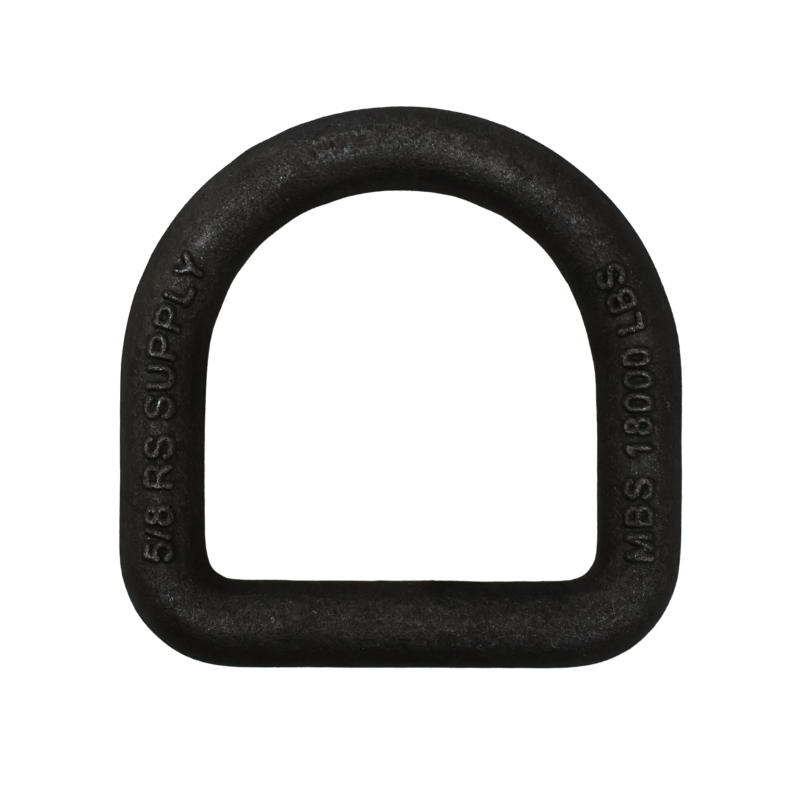

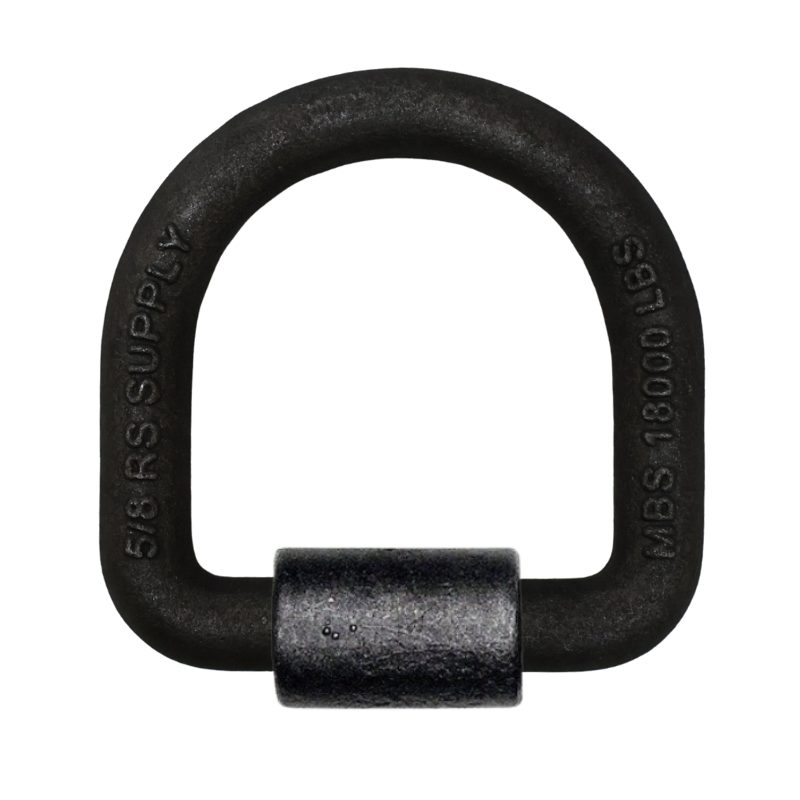

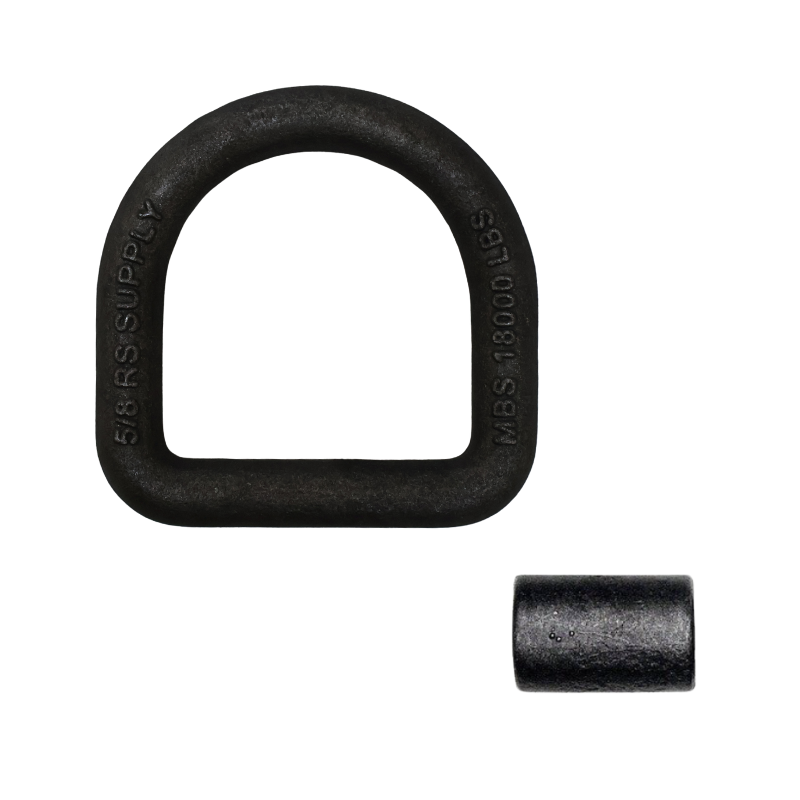

The 5/8″ Forged D-Ring with Weld-On Mounting Bracket, part #31-DR-58W, gives you a strong cargo anchor point for trailers and flatbeds. The forged steel ring mounts directly to steel surfaces. This tie-down anchor works on utility trailers, equipment trailers, car haulers, livestock trailers, and commercial flatbeds. It creates a permanent anchor point you can rely on.
This weld-on D-ring uses a 5/8 inch diameter forged ring that resists bending and deformation under heavy load. It pairs with strong straps, chains, and tie-downs to secure cargo each time you haul. The included mounting bracket welds easily to your trailer frame so you get a solid mechanical connection that holds tight on long trips and rough roads.
The ring’s inner dimensions sit around 3″ x 3″, giving you enough room to clip large hooks and heavy chain links without crowding. It stays close to the trailer surface when not in use. The weld-on bracket has enough steel thickness to stand up to repeated loads without flexing.
This D-ring has a working load limit of about 6,130 lbs and an ultimate break strength of around 18,390 lbs when installed correctly. That rating gives you a robust anchor for serious cargo control. Do not use this hardware for overhead lifting.
Install this part by welding the bracket square to a clean trailer surface. Then let the weld cool. This creates a permanent tie-down point for straps, chains, and binders. Check hardware before every load. Use lock washers and quality bolts if you ever bolt this ring through plate mounts for extra strength.
