3500 LB Double Eye Single Axle Suspension Kit

$190.00

Suspension Kit 3500 LB, Single Axle, Double Eye

In stock

3500 LB Double Eye Single Axle Suspension Kit

This kit comes with all the components you'll need to install your Single Axle Trailer Suspension.

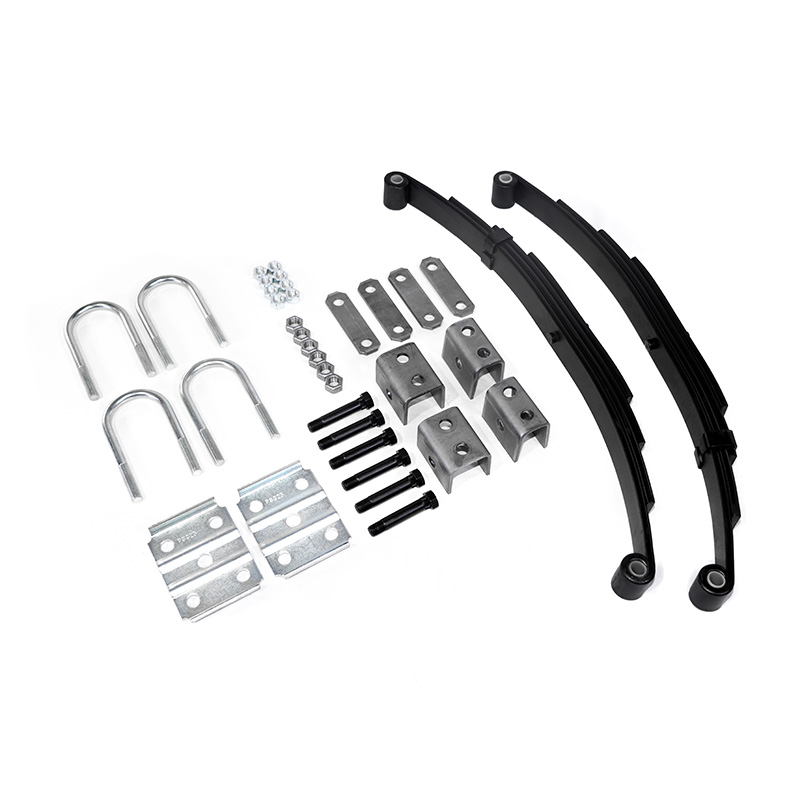

This Kit Includes:

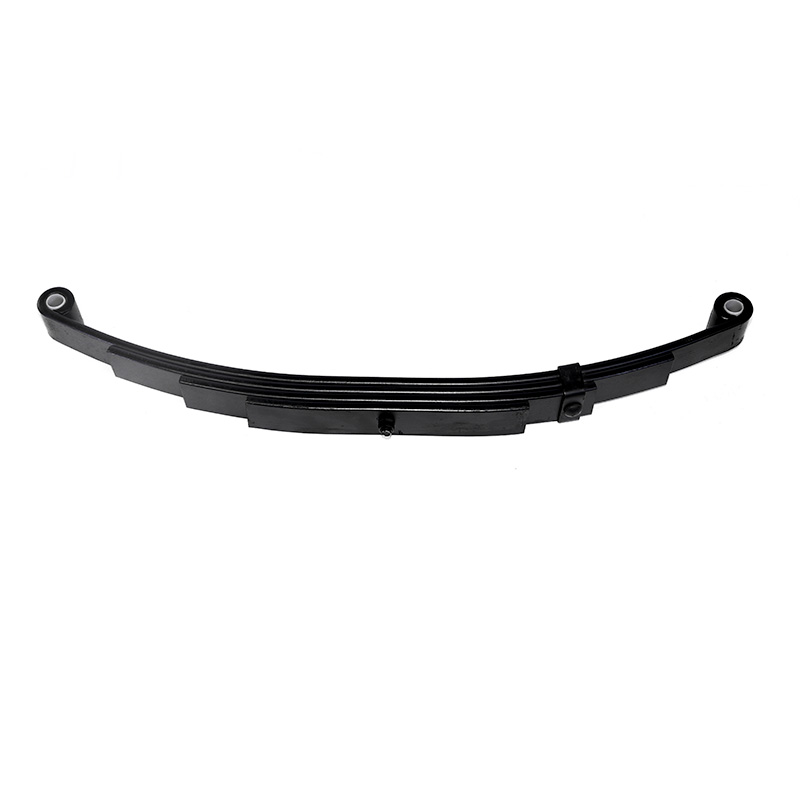

  • (2) Leaf Springs - 4 Leaf (1,750 lb.), 1-3/4" wide, 25-1/4" long

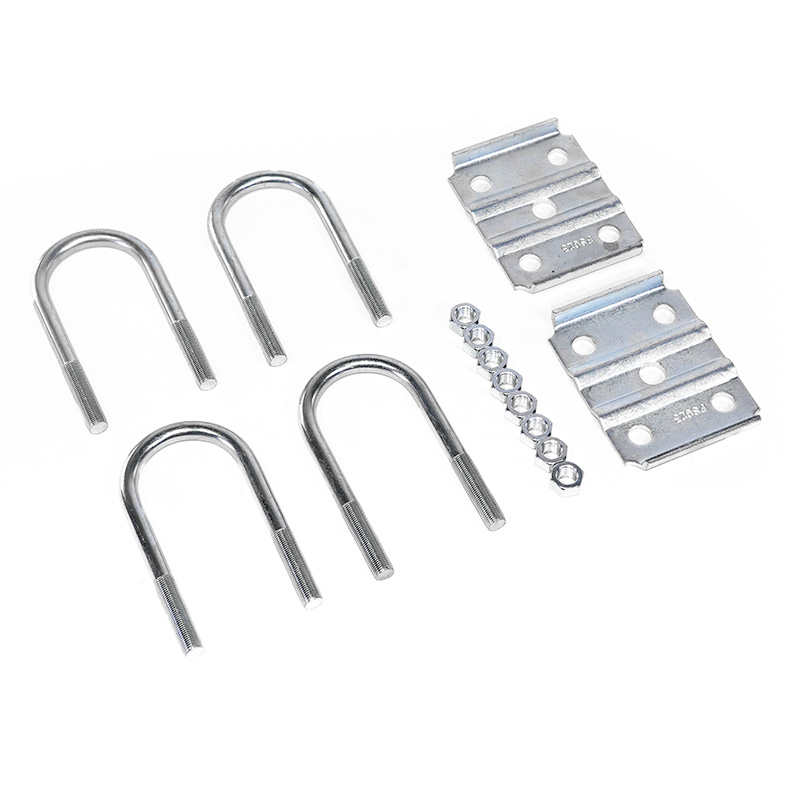

  • (4) U-Bolts - 2 3/8" U-Bolts, 5.5" long, 2.5" ID width, 1/2"-24 thread, 2" thread length
  • (2) U-Bolt Plates - 5" x 3.75" tie plates for 2 3/8" U-bolts
  • (8) Nuts - 1/2" 20 hex nuts
  • (4) Hangers - (x2) 1-1/2" tall front hangers, (x2) 7/8" tall rear hangers

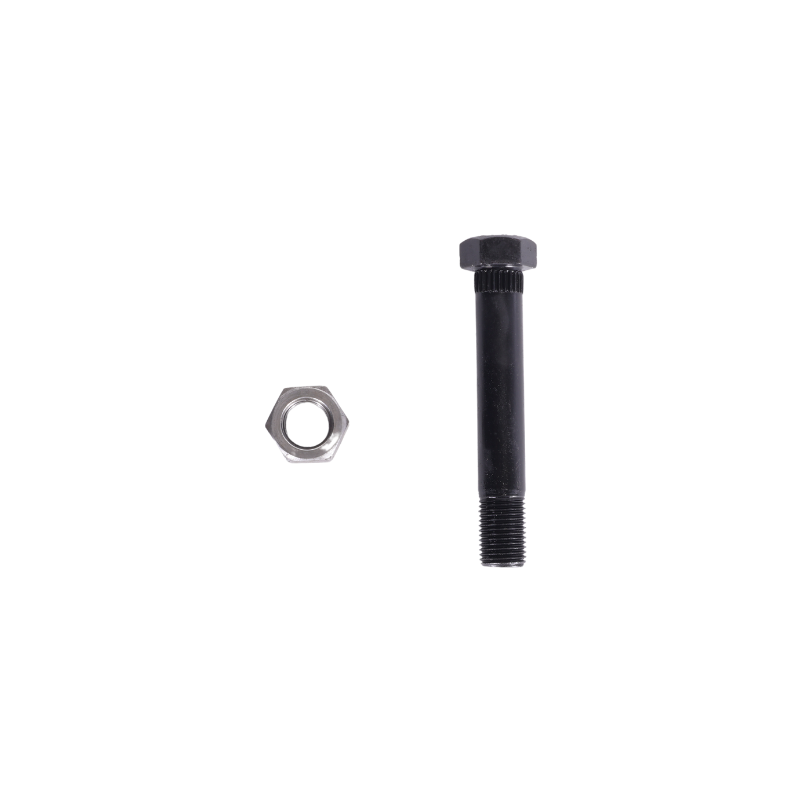

  • (6) Hanger Bolts and Nuts - 3" long x 9/16" diameter shackle bolts, 9/16" diameter lock nuts

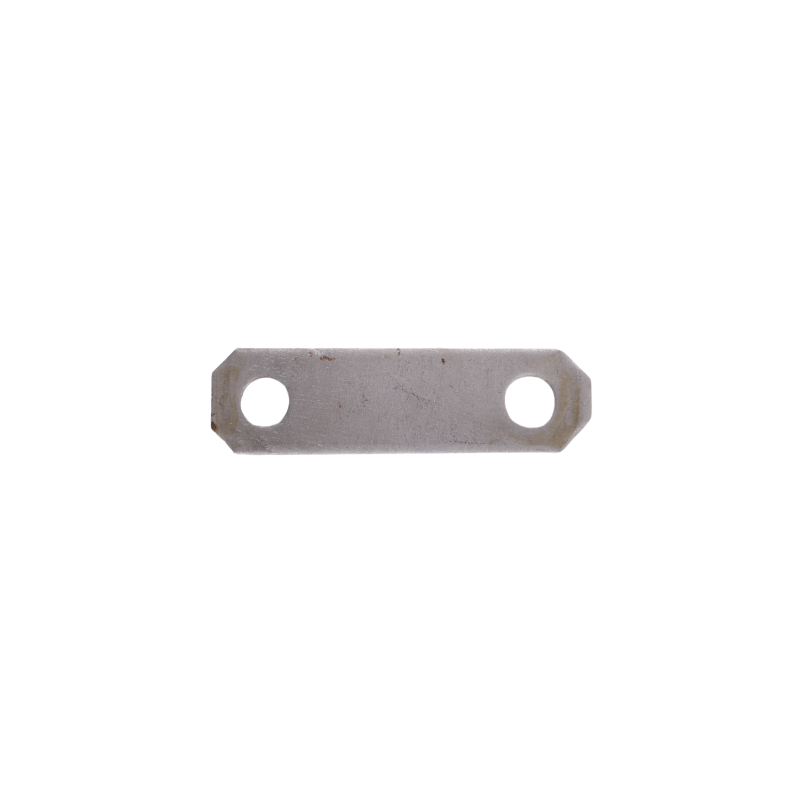

  • (4) Shackles - 3-1/8" long shackle straps
