Description
Reliable Stopping Power for 7K Trailers

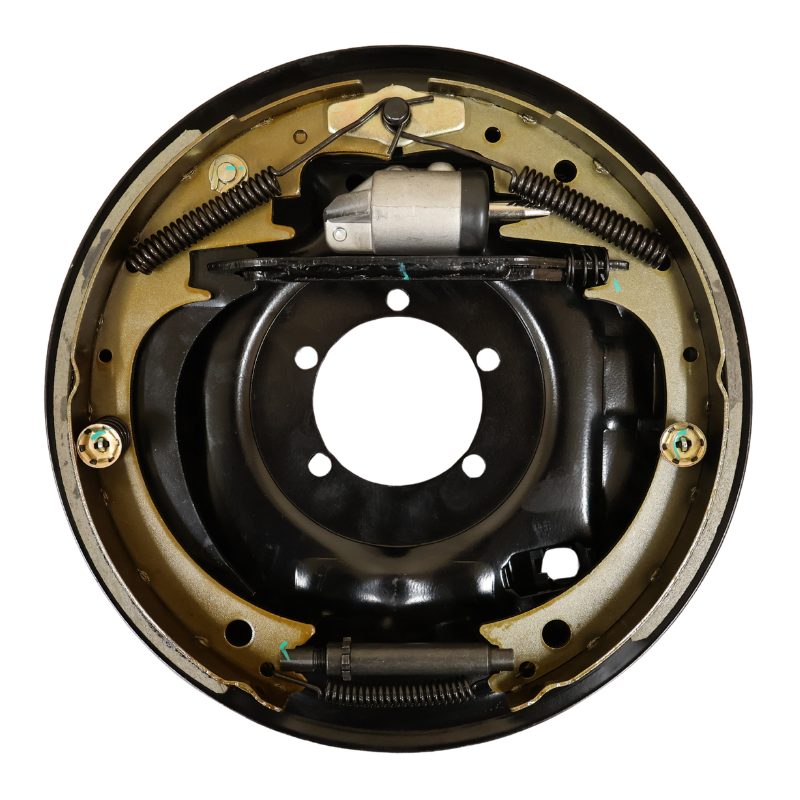

This 12″ hydraulic trailer brake with parking brake is designed to deliver consistent, controlled stopping power for 7,000 lb axles. Specifically built for the right-hand side, it provides smooth braking response under heavy loads. Because it uses hydraulic actuation, braking pressure remains steady and predictable. As a result, you gain better control in traffic, on grades, and during repeated stops.
Larger Brake Size for Improved Performance
With a 12-inch brake drum diameter, this brake increases braking leverage and improves heat dissipation. In addition, the 2″ wide brake shoes create a larger friction surface. This wider contact area helps reduce brake fade and extends lining life. Consequently, the brake performs reliably in demanding conditions such as job sites, steep terrain, and highway towing.
Integrated Parking Brake for Added Safety
In addition to strong braking performance, this assembly includes a mechanical parking brake. This feature allows the trailer to remain securely in place during loading, unloading, or parking on inclines. Moreover, the lever-style parking mechanism engages smoothly and releases cleanly. Because of this added control, the brake is well suited for equipment trailers, dump trailers, car haulers, and flatbeds.
Proper Fit and Right-Hand Orientation
This brake assembly is compatible with standard 7K hydraulic brake drums and mounts to a 5-bolt brake flange with a 3-1/2″ bolt circle. It is designed for 8-lug hub assemblies commonly used on 7,000 lb axles. Most importantly, the right-hand orientation ensures correct forward self-energizing action. Therefore, braking force increases naturally as the trailer slows, while shoe wear stays even.
Heavy-Duty Construction You Can Trust
To ensure long-term durability, this brake uses heavy-gauge steel components throughout. The reinforced backing plate resists flex under load. At the same time, the hydraulic wheel cylinder applies even pressure to both shoes. High-tension return springs then retract the shoes quickly, reducing drag and promoting smooth operation.
Fast Installation and Simple Setup
This brake ships fully assembled, which saves time during installation. Simply bolt it to the axle flange, connect the hydraulic line, and adjust the shoes. Once installed, it works with DOT-approved hydraulic brake fluid and delivers dependable performance right away.
Product Specifications
• Brake Size: 12″ diameter
• Brake Shoe Width: 2″
• Axle Capacity: 7,000 lbs
• Orientation: Right-Hand
• Actuation Type: Hydraulic
• Parking Brake: Integrated mechanical lever
• Mounting Flange: 5-bolt, 3-1/2″ bolt circle
• Hub Compatibility: 8-lug, 7K hydraulic drums
Built for Demanding Towing Applications
Overall, this 12″ right-hand hydraulic trailer brake with parking brake is built for serious work. It delivers confident stopping power, secure parking control, and long-lasting durability. When safety and reliability matter, this brake gets the job done.
Additional Part #: K23-341-01, 23-341
