Description
Dependable Braking Power for 7K Trailers

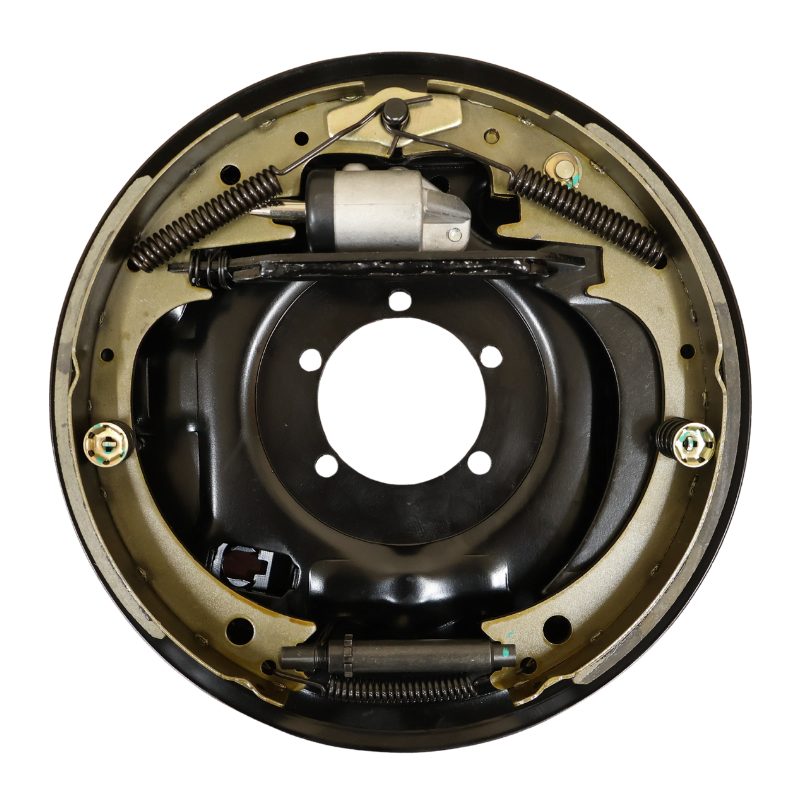

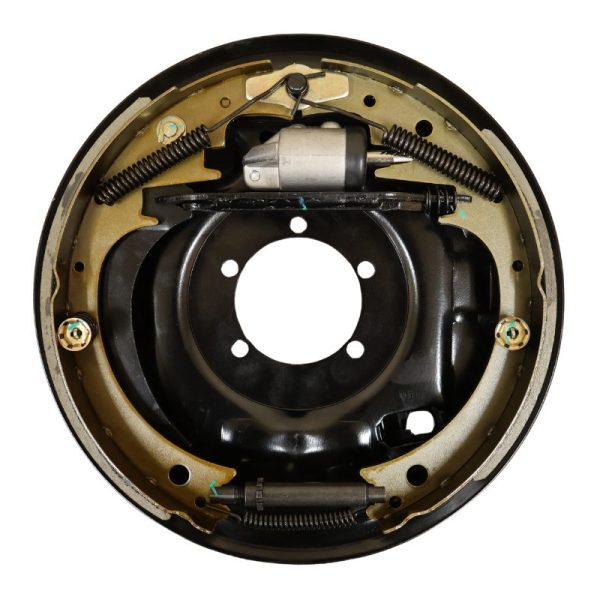

This 12″ hydraulic trailer brake with parking brake is engineered to deliver smooth, reliable stopping power for trailers equipped with 7,000 lb axles. Designed specifically for the left-hand side, this brake provides predictable response and consistent pressure under load. Because it uses hydraulic actuation, braking input transfers smoothly to the shoes. As a result, you maintain confident control in demanding towing conditions.
12-Inch Brake Design for Strong, Consistent Stops
The 12″ drum diameter increases braking leverage and improves heat dissipation during repeated stops. In addition, the brake uses 2″ wide brake shoes, which create a large contact surface inside the drum. This wider shoe design helps reduce fade, improves stopping efficiency, and extends lining life. Consequently, the brake performs reliably on steep grades, in traffic, and on job sites.
Integrated Parking Brake for Secure Holding
Beyond standard braking, this assembly includes an integrated mechanical parking brake. This feature securely holds the trailer in place during loading, unloading, or when parked on uneven ground. Moreover, the lever-style mechanism engages easily and releases cleanly. Because of this added safety, the brake is ideal for equipment trailers, dump trailers, car haulers, and flatbeds that require dependable holding power.
Correct Left-Hand Orientation and Proper Fit
This brake is built for use with standard 7K hydraulic brake drums and mounts to a 5-bolt brake flange with a 3-1/2″ bolt circle. It is compatible with 8-lug hub assemblies commonly used on 7,000 lb axles. Most importantly, the left-hand orientation ensures proper forward self-energizing action. Therefore, braking force increases naturally as the trailer slows, while shoe wear remains even and controlled.
Heavy-Duty Construction for Long Service Life

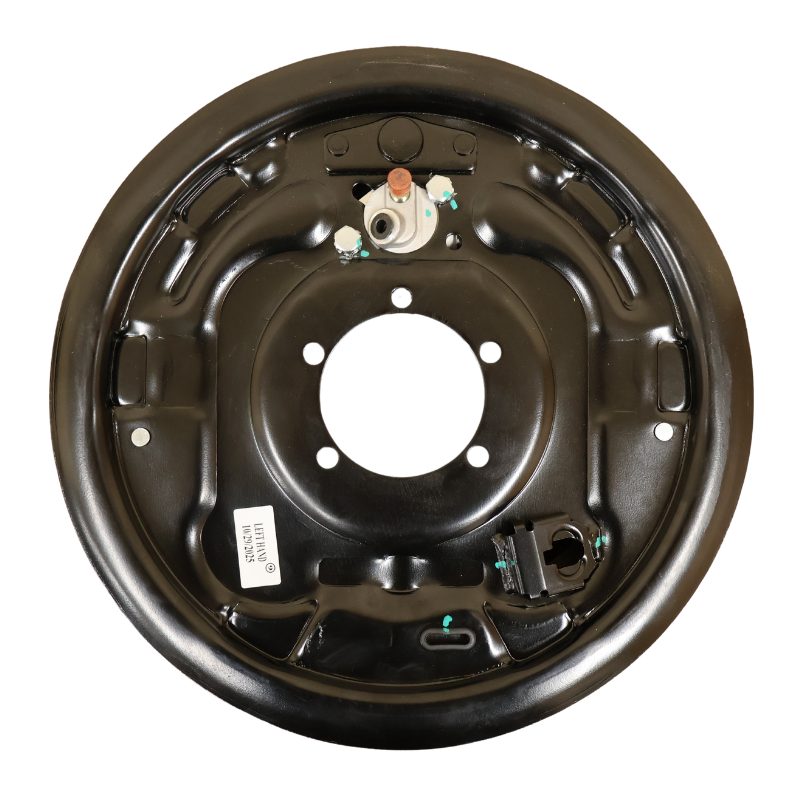

To handle real-world towing demands, this brake uses heavy-gauge steel components throughout. The reinforced backing plate resists flex under braking load. At the same time, the hydraulic wheel cylinder applies even pressure to both shoes for balanced braking. High-tension return springs retract the shoes quickly after release, reducing drag and promoting smooth operation.
Fully Assembled for Faster Installation
This brake ships fully assembled, which simplifies installation and reduces setup time. It bolts directly to the axle brake flange and connects easily to standard hydraulic brake lines. It operates with DOT-approved hydraulic brake fluid. Once installed and adjusted, it is ready for dependable service.
Product Specifications
• Brake Size: 12″ diameter
• Brake Shoe Width: 2″
• Axle Rating: 7,000 lbs
• Orientation: Left-Hand
• Actuation Type: Hydraulic
• Parking Brake: Integrated mechanical lever
• Mounting Flange: 5-bolt, 3-1/2″ bolt circle
• Hub Compatibility: 8-lug, 7K hydraulic drums
Built for Work and Reliability
Overall, this 12″ left-hand hydraulic trailer brake with parking brake is built for demanding towing applications. It delivers strong stopping power, secure parking control, and long-lasting durability. When you need dependable braking on a 7K axle, this brake is ready to perform.
